Modular Cleanroom Solutions
Modular cleanroom
Modular Clean room Modular laboratory Modular clean room Manufacturers Prefabricated clean room Container-type laboratory Portable cleanroom Prefab laboratoryportable clean room
Request a Free Quote
Modular Cleanroom System Specifications
Standard configuration for the Wonclean modular cleanroom system. Core, facing, thickness and frame are all customizable to project and cleanroom classification requirements.
| Panel core | PIR/PUR foam (24–40 kg/m³), non-halogenated (mineral wool / honeycomb options) |
|---|---|
| Face sheets | 0.5 mm HPL (1.0 mm total), EN 438-3 (316L SS / aluminum / steel options) |
| Fire rating | EN 13501-1 Class B-s1,d0 (A2-s1,d0 / ASTM E84 Class A) · up to 120 min |
| Wall thickness | 100 mm standard / 150 mm HVAC-integrated (200 mm acoustic) |
| Air leakage | ≤ 0.05 ACH @ 25 Pa (≤ 0.02 ACH sealed joints) |
| Surface finish | HPL matte antimicrobial (ISO 22196:2011) (ESD 10⁶–10⁹ Ω/sq) |
| Frame | Aluminum 6063-T5 anodized, boltless (marine-grade SS304 option) |
| Temperature stability | ± 0.5°C |
| Integrated services | Lighting, power, HEPA/ULPA filtration, interlocked access control |
| Compliance | ISO 9001/14001 · SIRIM QAS · CE (USP <797>/<800>, FDA 21 CFR 11 ready) |
Values shown are standard/representative configurations. Confirm final certified figures (fire test, air-tightness) against the project datasheet before specification — Wonclean issues a stamped datasheet with every quotation.

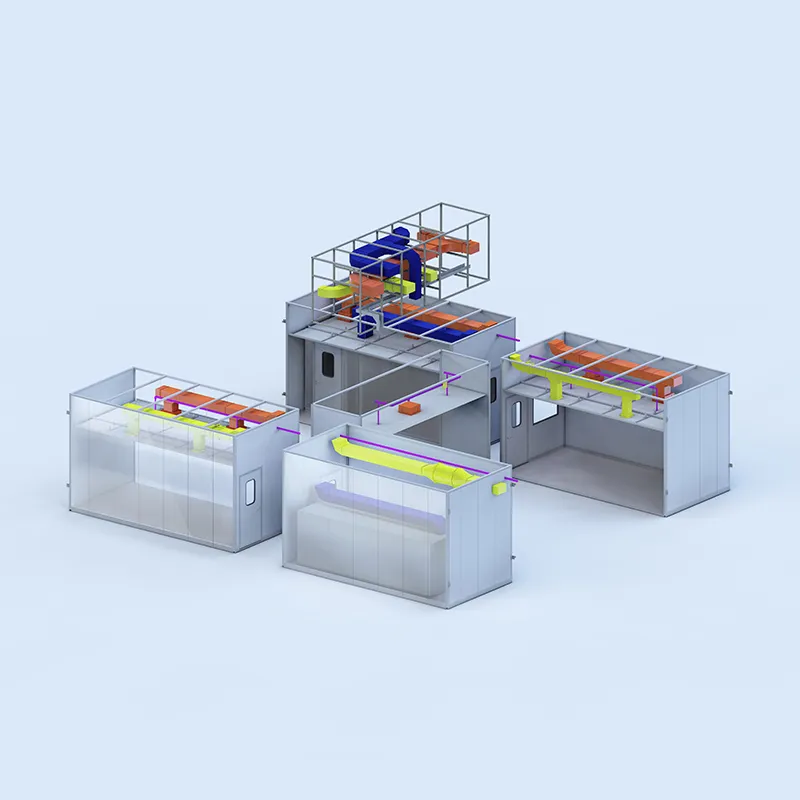

Modular Cleanroom System Construction
In-house HPL panel production is the engineering secret. Panels with antimicrobial PVC edges and zero-VOC adhesives are pre-gasketed to ±0.3 mm tolerance for repeatable sealing — then integrated with lighting, power, HEPA/ULPA filtration and interlocked access control as a complete system.
Why Choose Our Modular Cleanroom System
Turnkey & fast
Factory-assembled and commissioned in 4–8 weeks, around 60% faster than traditional builds.
Stable conditions
Temperature stability to ±0.5°C with validated < 0.05 ACH air-tightness.
120-minute fire integrity
Class A / A2 core options provide fire-rated integrity up to 120 minutes.
Non-shedding & ESD
Antimicrobial HPL surfaces with electrostatic-dissipative options for sensitive processes.
Fully integrated
Integrated lighting, power, HEPA/ULPA filtration and interlocked access control.
Validation-ready
USP <797>/<800> and FDA 21 CFR Part 11-ready with SIRIM QAS and CE marking.
Modular Cleanroom System Applications
Deployed as complete turnkey cleanrooms across regulated and high-precision industries. See real cleanroom project case studies or browse the full cleanroom product range.
Get a project-specific quote in 24 hours
Send your cleanroom classification, floor area and finish requirements. Our Malaysia-based engineering team replies with a stamped datasheet, fire certificate and pricing — 7×24 technical support by email, phone or WhatsApp.
Request a Free Quote Chat on WhatsApp
