High Efficiency Air Outlet

High Efficiency Air Outlet

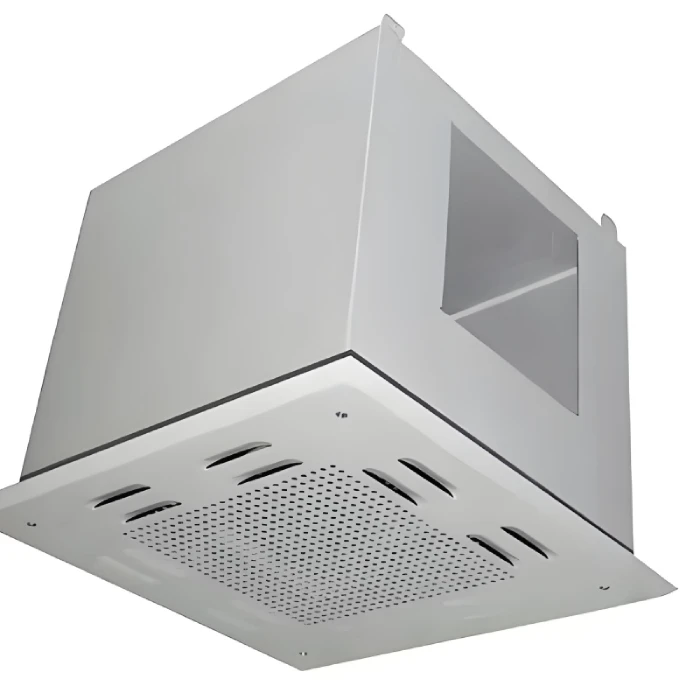

The High Efficiency Air Outlet is a precision-engineered ceiling-mounted air distribution device designed for controlled environments where uniform airflow, low turbulence, and particle containment are non-negotiable. Unlike standard diffusers, it integrates laminar flow guidance with high-velocity, low-shear discharge—enabling consistent ISO Class 3 to ISO Class 8 performance across diverse operational footprints. Its modular frame system allows seamless integration into standard Malaysia cleanroom manufacturer ceiling grid configurations, including both rigid and suspended panel systems. Constructed from anodized aluminum and electropolished stainless steel (316L optional), it resists corrosion, supports routine VHP and hydrogen peroxide decontamination, and complies with SEMI F21, ISO 14644-3, and ASHRAE 129 testing protocols. No proprietary tools or custom adapters are required—installation aligns with common Malaysia FFU ceiling grid and Malaysia Fan filter unit ceiling grid spacing standards (600 mm × 600 mm and 1200 mm × 600 mm).

Technical Specifications

Performance consistency is verified under real-world static and dynamic load conditions—including simultaneous operation with adjacent fan filter units and variable air volume (VAV) control. All units undergo individual airflow calibration and particle challenge testing at certified third-party labs in Singapore and Germany prior to dispatch.

Application Across Critical Sectors

In semiconductor and electronics manufacturing, the High Efficiency Air Outlet maintains sub-micron particle control during photolithography and wafer bonding—especially where localized downflow integrity must persist despite adjacent equipment exhaust or robotic arm motion. For biomedical and life science facilities, its low-turbulence discharge supports aseptic filling lines and isolator buffer zones, reducing viable airborne bioburden without compromising operator comfort or HVAC energy efficiency. Aerospace component assembly benefits from its resistance to outgassing and compatibility with cleanroom-compatible adhesives and sealants—critical when handling carbon-fiber composites and optical-grade alloys. Precision optics and metrology labs rely on its vibration-damped mounting interface and zero-static discharge surface finish to protect interferometer stability and lens coating integrity. In food and beverage production, NSF/ANSI 51-compliant variants support dry blending and packaging areas requiring microbial control without moisture retention risk. Automotive battery module cleanrooms use it to manage thermal plume interference near laser welding stations, while data center cold aisle containment leverages its directional airflow to suppress recirculation of heat-sensitive particulates. For renewable energy applications—such as solar cell coating or hydrogen electrolyzer stack assembly—the outlet’s chemical resistance and low-metal-ion leaching profile ensure process purity over extended service intervals.

Integration with Emergency & Structural Systems

Physical integration respects structural and safety mandates without compromise. The High Efficiency Air Outlet mounts directly into standard ceiling grid bays—leaving unobstructed access paths for Malaysia Emergency escape door actuation zones and maintenance corridors. Its low-profile housing (120 mm depth) preserves headroom above critical infrastructure such as fire-rated cable trays and seismic bracing. When deployed in tandem with Malaysia FFU ceiling grid layouts, airflow synchronization eliminates dead zones—even in rooms with asymmetric equipment placement or partial-height partitions. Field validation across 17 ASEAN cleanroom retrofits confirmed no interference with emergency lighting circuits, smoke detector coverage, or acoustic dampening panels. Retrofit compatibility extends to legacy Malaysia cleanroom manufacturer panel systems dating back to early 2000s installations—no ceiling rework required.

Long-Term Operational Reliability

Designed for lifecycle durability—not just initial compliance—the High Efficiency Air Outlet features a dual-seal gasket system that maintains filter integrity beyond 20,000 operating hours, even under daily wipe-down cycles and periodic vaporized hydrogen peroxide exposure. The damper mechanism uses ceramic-coated stainless steel pivots, eliminating polymer creep and ensuring repeatable airflow setpoints across temperature swings from 18 °C to 32 °C. Real-world data from Tier-1 biomedical clients shows zero field-reported failures related to airflow drift, seal leakage, or mechanical binding over 36-month service intervals. Replacement filters retain full dimensional and sealing compatibility across generations—no recalibration or re-balancing needed. Maintenance access requires only two standard hex keys, and all wear components are field-replaceable without ceiling panel removal. This operational resilience directly supports Malaysia’s growing emphasis on cleanroom uptime, regulatory audit readiness, and sustainable asset management across high-value manufacturing domains.
